FLAT
Configurable, modular,
with strong charging.
  • A mighty USB-C and USB-A
  • Optional integration of control system
  • PULL-OUT cables or modules

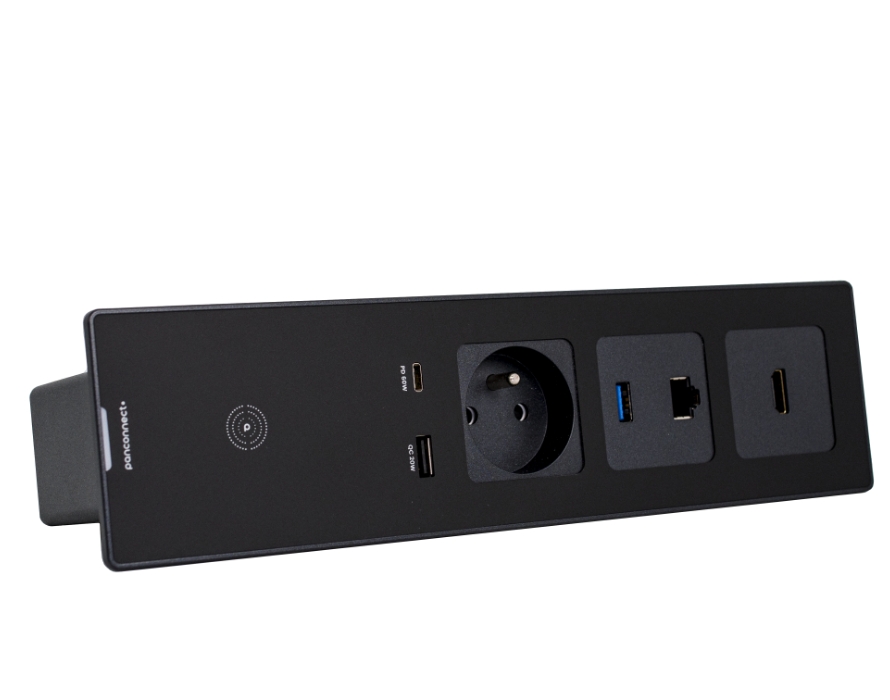

Rectangle 718
FLAT
Panel with modules or cables with strong charging and a low installation profile
size
lite
LITE
m
M
l
L
xl
XL
plus
PLUS
Available modules
hdmi
HDMI
usb-c
USB-C
2xlan
2XLAN
hdmi_usb-c
HDMI
USB-C
lan_usb-a
LAN
USB-A
cable_neck
CABLE
NECK
Delivered in multiple socket country standards
fr
FR
sc
SC
dk
DK
it
IT
us
US
uk
UK
un
UN
ch
CH
colors
Available colours
Onyx Black, Cotton White or Alu Silver.
metal
Solid steel design
Panel is made of steel and the surface covered by high-quality and resistant material called FENIX.

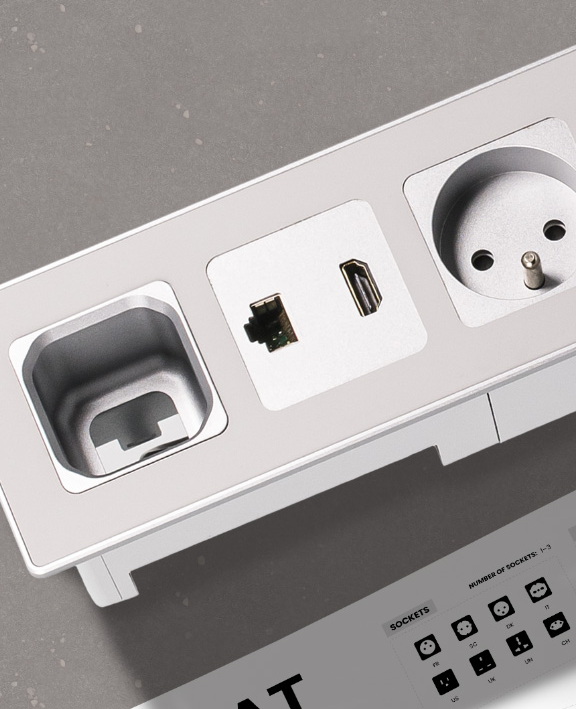

modularity
Modularity
Need to create a specific configuration according to the project? No problem!

How to configure panel FLAT?

1
01.
Choose size, colour and charging options
2
02.
Select socket standard and modules for free positions in chassis.
3
03.
Choose your PULL-OUT cables
The main advantage is universality and modularity. Choose your custom variant, no matter if you require modules, cables, sockets, USB charging, Qi wireless charging or control system. You can combine connectors, cables and sockets in all the sizes of the panel based on the project's needs.

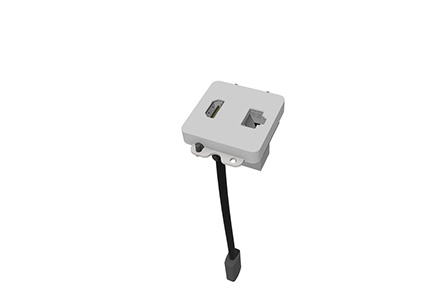

Which modules can I choose in FLAT?
HDMI
HDMI
USB-A | HDMI
USB-A | HDMI
USB-C | HDMI
USB-C | HDMI
USB-C
USB-C
LAN | HDMI
LAN | HDMI
LAN | LAN
LAN | LAN
USB-C | LAN
USB-C | LAN
XLR
XLR

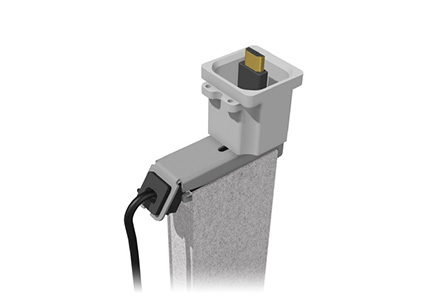

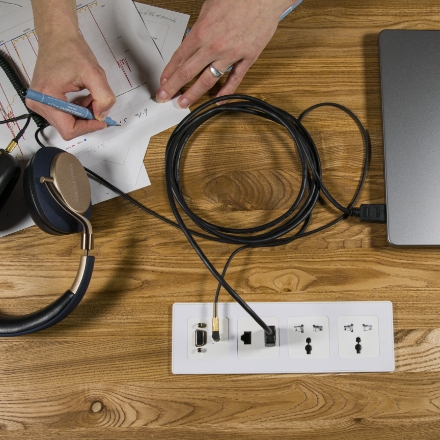

You can rely on the integrated cables

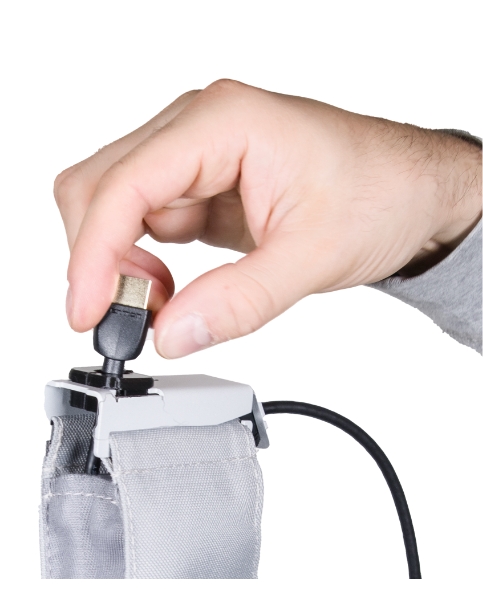

Smart and reliable system for cable management. Meet our PULL-OUT system that allows the cable to pulled up to 96 cm. This mechanism works on the principle of gravity weighted cables housed in a textile bag.
Group 10044

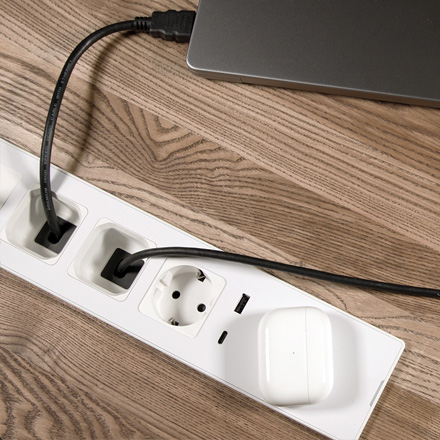

WEB_H FLAT A
Incredibly easy cable pull that stops when it is placed on the table.
WEB_H FLAT B

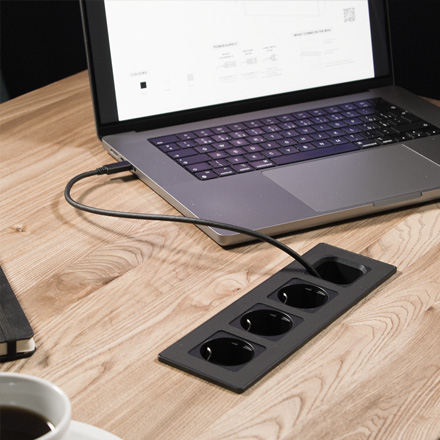

If you want to retract the cable, simply lift it from the desk and the brake releases.

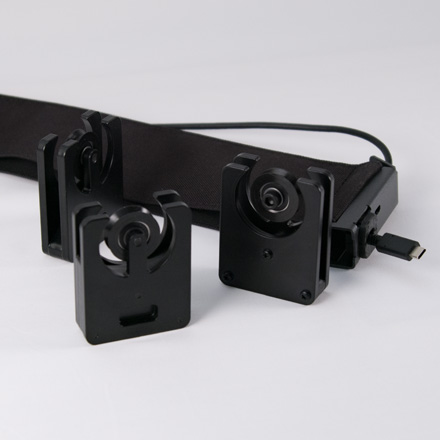

WEB_H FLAT C
Depending on the type of cable, its thickness and flexibility, three different pulleys with different weights are supplied.
What cables can I choose for my PULL-OUT?
USB-C 3.2 <br>(M–M)
USB-C 3.2
(M–M)
HDMI <br>(M-M)
HDMI
(M-M)
HDMI <br>(M-F)
HDMI
(M-F)
Lan <br>(M–M)
Lan
(M–M)
USB-C 3.2 <br>(M–F)
USB-C 3.2
(M–F)
USB-A <br>(M–F)
USB-A
(M–F)
DISPLAY PORT <br>(M-M)
DISPLAY PORT
(M-M)
miniDP HDMI <br>(M-M)
miniDP HDMI
(M-M)

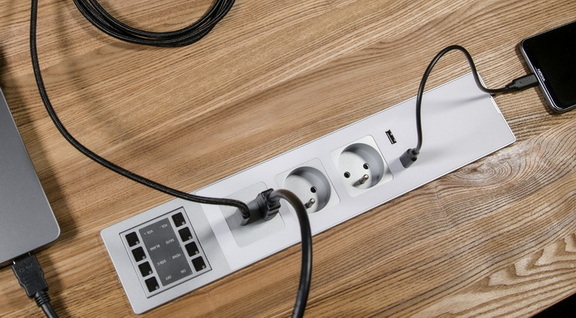

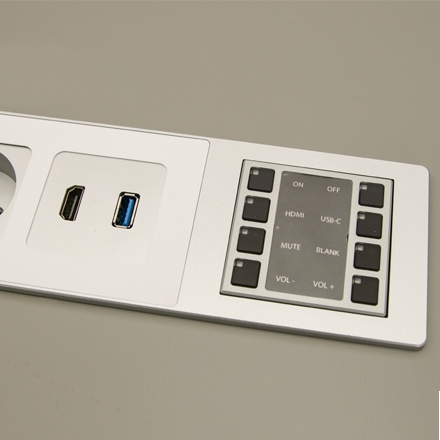

Do you require connectivity and AV control in one place?

FLAT PLUS is ready for a keypad control system. The systems supported are BIAMP (Neets), CUE and other producers such as Extron, Crestron etc.
1
Biamp (Neets) systems
Suitable for Neets Echo, Echo Plus, and Sierra II EU (squared form factors)
2
CUE Keypad 55
Prepared for liteCUE-basic or Keypad 55 as a part of a larger system.
3
And other control systems
Prepared also for integration of similar keypads from Extron, Crestron, Kramer etc.

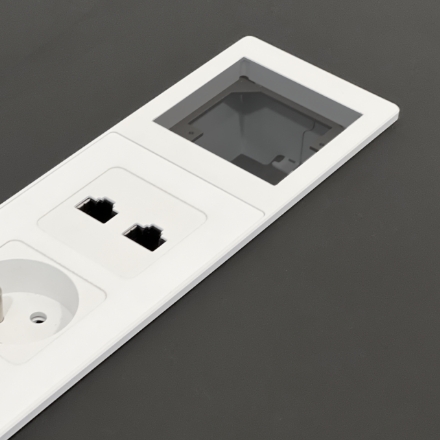

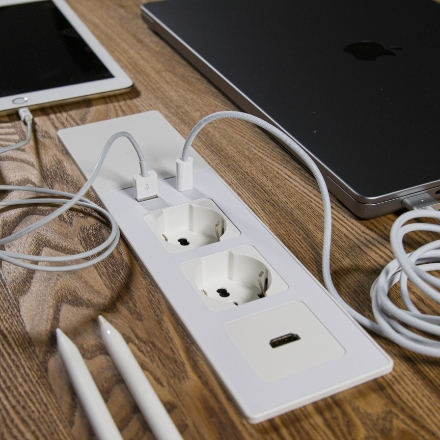

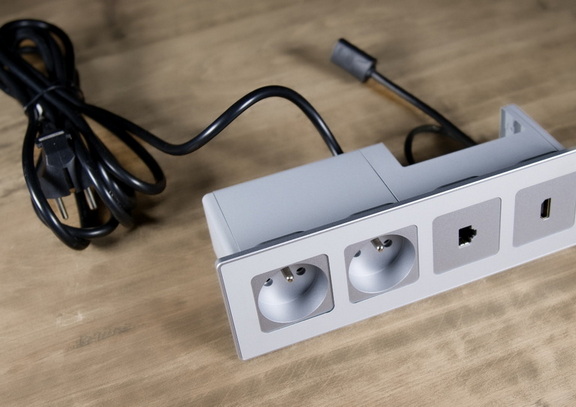

FLAT LITE is an entry level for panel FLAT. It meets basic connectivity requirements. You can combine sockets and modules based on the project or user needs. FLAT LITE has 4 fields so configure your preferred combination -  you can choose 2 sockets and 2 modules, 3 sockets and 1 module or only 4 sockets.

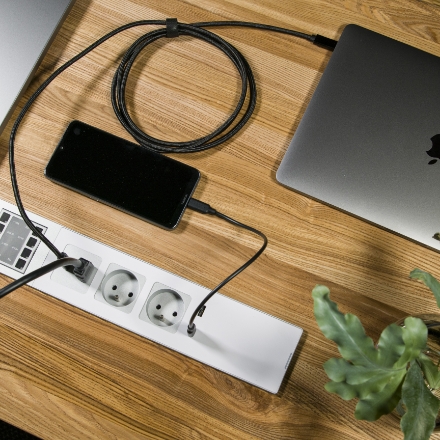

What is the best place for FLAT?

1
Meeting room
Manage meeting easily. FLAT will back you up. Charging, connectivity. Everything at one place.
2
School
No tangled cables or extension cables needed. FLAT is a neat solution.
3
Office
Deadlines, emails, meetings may not be easy. But with FLAT, you'll be at ease.

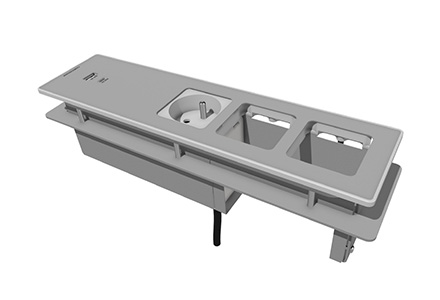

How to install FLAT
01.
Mark the centres of both holes and drill them with the hole saw.
02.
Take a jig saw and cut the hole. Clean the edges and insert the panel into the hole.
03.
Place the mounting frame and tighten the screws. Connect the cables and plug the panel into the socket.

Technical specification

lite
FLAT LITE
materials
Materials
Dural | Fenix NTM | Alumium | ABS
dimensions
Dimensions
227,5 × 73 × 81 mm
weight
Weight
760 g
sockets
Number of sockets
up to 4
usb
USB-C
PowerDelivery up to 60W
USB-A
QuickCharge 3.0 up to 5A
qi
Qi
not relevant
pullout
PULL-OUT
0-2 variable cables
lite
materials
Materials
Dural | Fenix NTM | Alumium | ABS
dimensions
Dimensions
227,5 × 73 × 81 mm
weight
Weight
1150 g
sockets
Number of sockets
up to 2
usb
USB-C
PowerDelivery up to 60W
USB-A
QuickCharge 3.0 up to 5A
qi
Qi
Qi 1.5A/5V
pullout
PULL-OUT
0-1 variable cables
m
materials
Materials
Dural | Fenix NTM | Alumium | ABS
dimensions
Dimensions
279 × 73 × 81 mm
weight
Weight
1260 g
sockets
Number of sockets
up to 3
usb
USB-C
PowerDelivery up to 60W
USB-A
QuickCharge 3.0 up to 5A
qi
Qi
Qi 1.5A/5V
pullout
PULL-OUT
0-2 variable cables
l
materials
Materials
Dural | Fenix NTM | Alumium | ABS
dimensions
Dimensions
330,5 × 73 × 81 mm
weight
Weight
1370 g
sockets
Number of sockets
up to 4
usb
USB-C
PowerDelivery up to 60W
USB-A
QuickCharge 3.0 up to 5A
qi
Qi
Qi 1.5A/5V
pullout
PULL-OUT
0-3 variable cables
xl
materials
Materials
Dural | Fenix NTM | Alumium | ABS
dimensions
Dimensions
360 × 73 × 81 mm
weight
Weight
1740 g
sockets
Number of sockets
up to 3
usb
USB-C
PowerDelivery up to 60W
USB-A
QuickCharge 3.0 up to 5A
qi
Qi
Qi 1.5A/5V
pullout
PULL-OUT
0-2 variable cables
plus
